How to Use an OBD2 Scanner and Understand OBD Codes

Image Credit: KarleHorn , CC BY 3.0 , via Wikimedia Commons

A picture containing graphical user interface Description automatically generated

OBD2 scanners are essential equipment for any Do-It-Yourself person or professional mechanic. They help you quickly and efficiently diagnose engine problems before they become severe enough to cause significant damage. But if you've never used an OBD2 scanner before, the whole process can seem a bit daunting. In this article, we'll walk you through everything you need to know about using an OBD2 scanner. By the end, you'll be an OBD2 scanning expert!

Image Credit: Wikiuser100000, CC BY-SA 3.0, via Wikimedia Commons

How to Read and Understand Check Engine Light (OBD-II) Codes

When your "check engine" light comes on, it comes with a sinking feeling in the pit of your stomach. After all, that little light is your car's way of telling you something is wrong. But what does it mean, exactly? If you're like most people, deciphering a check engine light code is enough to make you panic. However, there's no need to worry. You can easily read and understand check engine light codes with some knowledge and simple tools.

What is an OBD2 scanner?

An OBD2 scanner is a device that helps you diagnose problems with your car's engine. It's connected to the car's computer and can read diagnostic codes that tell you what's wrong with the machine. Most modern cars have an OBD2 port, so you can plug the scanner into the port and start diagnosing problems.

There are various scanners on the market, so you'll need to choose one compatible with your car. You can also get software that lets you use your smartphone as a scanner, which can be handy if you don't want to buy a separate device.

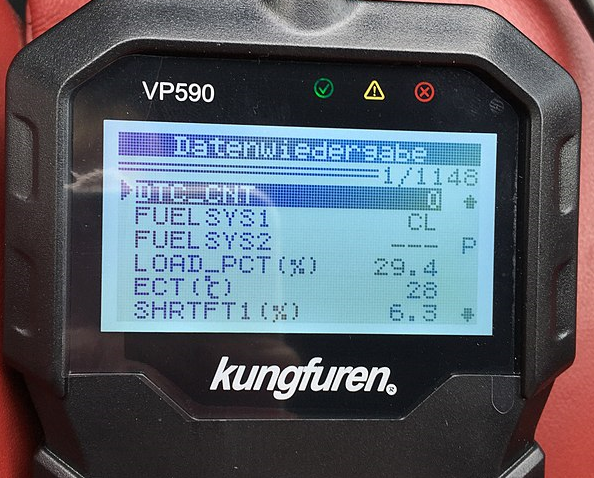

Image Credit: Travis Goodspeed / flickr

Types of OBD2 scanners

Obd2 scanners come in all shapes and sizes these days.So, which type of scanner is right for you? Well, that all depends on your needs. A code reader will do the trick if you want to check engine codes quickly. But if you're looking for more detailed information about your vehicle's performance, you'll need a more advanced scan tool. Find out the significant differences below:

Basic Code Reader

As the name suggests, this type of scanner reads and displays the codes stored in your vehicle's computer. This can be extremely helpful when diagnosing a problem, giving you a starting point to work from. Many code readers will also provide essential live data, such as engine RPM and coolant temperature. This can be invaluable when trying to track down a problem.

Handheld scanners

Handheld scanners are a type of OBD2 scanner that allows mechanics to diagnose problems with a vehicle's engine quickly. These scanners work by reading the codes stored in the engine's computer. By doing this, they can determine what is causing the engine to run improperly.

Professional OBD2 scanners

Professional OBD2 scanners are more expensive and feature-rich than the average scanner, but they are essential for anyone working on cars. Professional scanners can perform various functions, including reading and clearing trouble codes, data logging, and live data streaming. Many also come with built-in code libraries that make it easy to find the right repair information.

Image Credit: Tumisu / Pixabay

Man, Thinking, Doubt, Question, Mark, Idea, Problem

How Does the OBD2 scanner work?

The OBD2 scanner connects to the vehicle's onboard computer, which stores information about the engine's performance. When the scanner turns on, it reads this information and displays it on the screen. This allows the mechanic to identify any issues causing the engine to run poorly quickly.

In some cases, the scanner can also provide information about how to fix the problem. While mechanics often use OBD2 scanners, they can also be used by do-it-yourselfers to troubleshoot engine problems. However, it is essential to note that only trained professionals should attempt to repair an engine problem.

How to read OBD codes: Preparation

Before you start reading OBD codes, there are a few things you need to do to prepare. First, find the manual for your car and locate the section on OBD codes. This will give you an idea of the codes and how to interpret them. Next, gather any tools you might need, such as a code reader or a laptop with an OBD-II interface. Finally, ensure the car is in a well-ventilated area to see the code reader easily display Once you have everything, you're ready to read OBD codes.

Step 1: Insert the OBD scanner into the OBD port

The first step to reading OBD codes is to plug the OBD scanner into the OBD port. You can find the OBD port underneath the dashboard on the driver's side. Once the scanner plugs, it can communicate with the vehicle's computer and read any stored Codes.

Step 2: Start the ignition

Before reading OBD codes, you need to turn on the ignition. This will allow the vehicle's computer to initialize and be ready to accept commands. Once the ignition is on, you can use a code reader or scan tool to connect to the OBD system and read the codes. The exact procedure will vary depending on the device you're using, but most code readers will have a button or switch that you need to press to begin the scanning process.

Step 3: Input the Vehicle Identification Number

This unique code is excellent in identifying your specific vehicle and is typically located on the dashboard or doorframe. Once you have found your VIN, you need to enter it into an OBD reader to retrieve the codes.

Step 4: Check OBD codes in the menu

The first step to reading an OBD code is finding the right spot in the menu. Many cars have this option in the settings menu, but if yours does not, you can purchase a code reader from an auto parts store. After you have located the code reader, select it and follow the instructions on the screen. You will likely need to connect the code reader to the car's OBD port, usually under the dash. After it is connected, it will prompt you to enter a four-digit code. This code is your car's unique identifier and is necessary for ordering OBD codes.

Step 5: Read the first character of the OBD code

The first step in reading OBD codes is identifying the character that comes before the code. This character indicates the type of code that you're dealing with. For example, a "P" code indicates a powertrain issue, while a "B" code indicates a body issue. By knowing what kind of code you're dealing with, you can narrow down the potential causes of the problem and get your car back on the road as quickly as possible.

Step 6: Decipher the second character of the OBD code

The second character of the OBD code is the one that will tell you what part of the system is malfunctioning. For example, if the code is P0420, the "P" stands for powertrain, and the "0420" means a problem with the catalytic converter. To read these codes, you will need an OBD reader. Once you have the reader, plug it into the OBD port, which is usually under the dash. Then, turn on the ignition and follow the prompts on the reader. It's as easy as that!

Step 7: Establish the third character of the OBD code

The third character in an OBD code indicates the type of problem detected. This character has four possible values, ranging from 0 to 3. A 0 indicates a generic engine fault, while a 1 indicates a manufacturer-specific engine fault. A value of 2 predicts an emissions-related fault, while a value of 3 indicates a fuel system fault.

To determine the meaning of the third character, you will need to consult your vehicle's diagnostic Trouble Code chart. This chart will provide the specific information you need to interpret the code. By following the steps outlined in this chart, you can quickly and easily solve any OBD code.

Step 8: Establish the final characters of the OBD code

The last character of an OBD code is also known as the "code type." This indicates whether the code is for a generic system or a specific manufacturer. For example, a code that starts with P0 is a generic Powertrain code, while a code that begins with B0 is a particular BMW code.

In most cases, you can safely ignore the code type and focus on the first three characters, which will be the same for both generic and specific codes. However, paying attention to the code type is essential if troubleshooting a problem with a particular manufacturer's vehicle. Otherwise, you might end up chasing your tail in search of a non-existent problem.

Summary

Now that you know how to use an OBD2 scanner and interpret the codes it gives you, you'll be able to diagnose and fix problems with your car much more quickly. And if you ever have trouble, remember: there's no such thing as a dumb question, so don't hesitate to ask for help.
